From Photoshop to HTML

Published on August 31st, 2009 by admin

Learn how the professionals convert their designs from Photoshop to CSS and HTML

Don’t have time to slice?

If you haven’t already, you can Download the PSD Files for the pre-sliced templates.

Part 1: Slicing in Photoshop

Before I start slicing I take a minute and figure out what I’ll need to slice.

Typical elements that need to be sliced

  • Photographs
  • Icons
  • Repeating background patterns
  • Logos
  • Rounded corners
  • Text using non-web safe fonts

Typical elements that don’t need to be sliced

  • Most solid colors
  • Text
  • Borders

Basically, you need to think about what can’t you achieve using CSS. For beginners this can be tricky but with experience it becomes second nature.

Step 1: Slice up the foundation

This is what I see needs to be sliced when I prepare to slice the foundation.

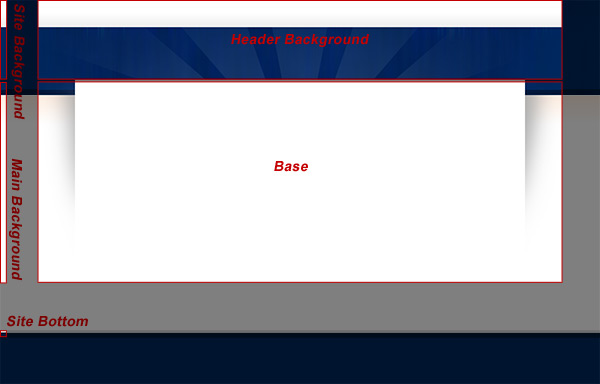

Layout Slices

Note: This image isn’t exact but it does give you an overall idea of how it should look.

As you see, we only need 5 slices in order to build our foundation. So let’s do this now.

1. Open the file Home.psd that you downloaded at the beginning of this tutorial.

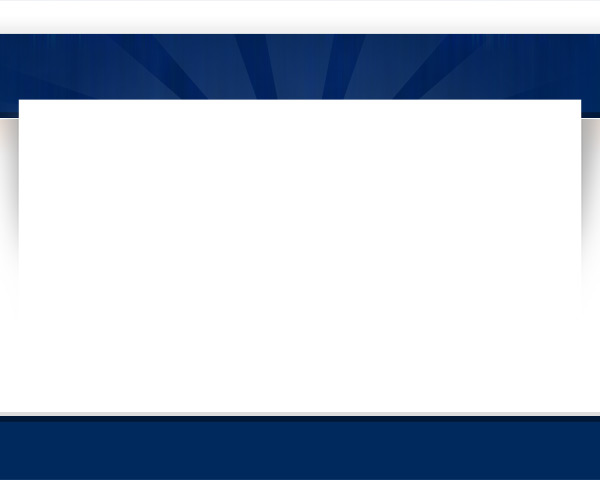

2. Hide the Header, Body and Footer groups in the layers palette. It should look similar to the picture below.

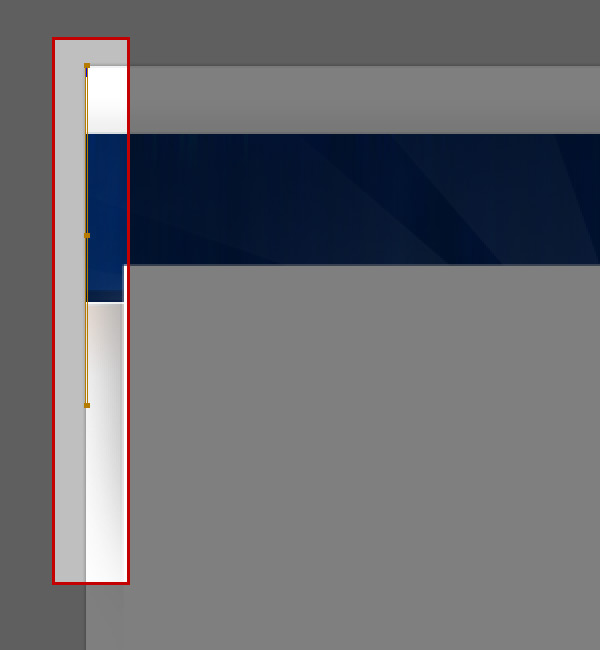

4. Using the slice tool, create a slice in the top left hand corner of the layout.

Site Background Slice

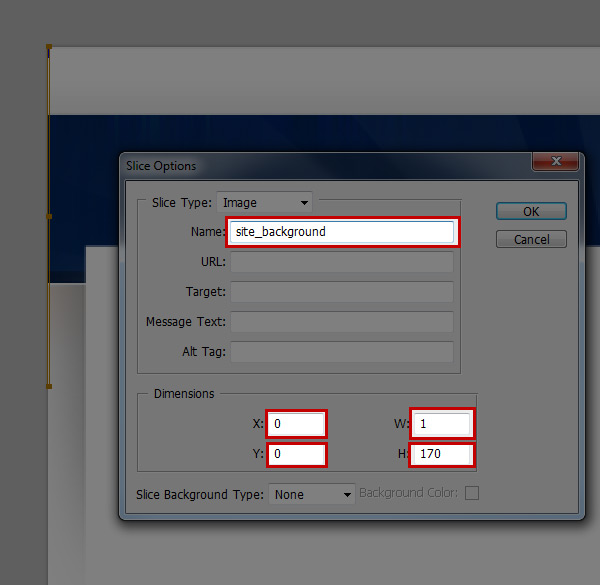

5. Right Click the new slice and name it site_background and give it the following parameters.

Slice Options

I’m not going to show you how to create every single slice in Photoshop. Instead I will provide you with a table with the slice names, dimensions and coordinates. Use that information to create the slices.

6. Create the remaining slices with the following information.

Slice Name: Coordinates (x, y) Dimensions (w x h)
site_background (0, 0) 1 x 170
main_background (0, 170) 1 x 430
header_background (80, 0) 1120 x 170
base (80, 170) 1120 x 430
site_bottom (0, 705) 1 x 15

7. Once you’ve created all your slices click File > Save for Web and Devices

From here, go through each slice and choose the appropriate file format. As a rule of thumb use jpeg for photographs and smooth gradients and gif or png for solid colors or text. If you’re not sure if you want to use gif or png, go with the one that is smaller.

For each slice I applied the following settings:

Image: File Format
site_background PNG-8
main_background PNG-8
header_background JPEG
base JPEG
site_bottom GIF

8. Click Save

9. From the dialog box that pops up navigate to your tutorial directory and create a new folder called images.

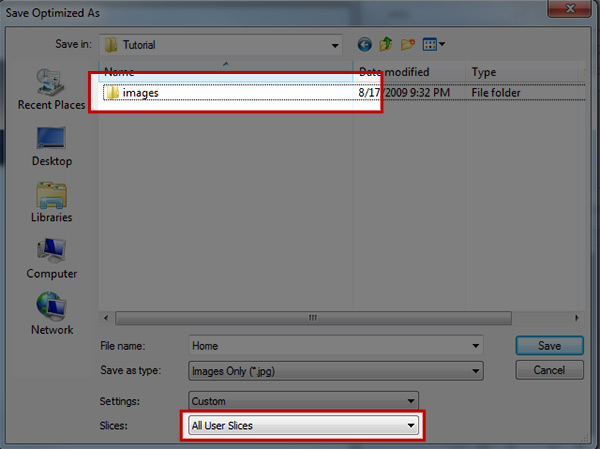

10. Select All User Slices from the drop down menu and click Save to save those slices into the images folder.

All User Slices

Step 2: Slice up the Main Menu and Logo

The Main Menu

For the main menu I’m going to create something called CSS sprites. What that means is I’m going to combine different states (idle and over) into one image.

1. Go back to Home.psd and reveal the Header group in the layers palette. You will see the logo and menu appear.

2. Hide all the text in the header group.

3. In this next step you will create 5 more slices. They should look like this when you’re done.

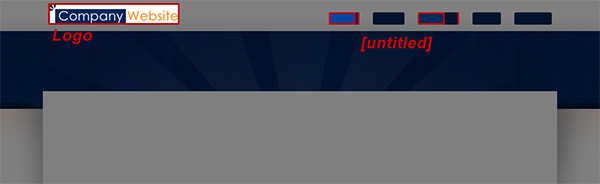

Main Menu

Please follow these parameters to create your slices:

Slice Name: Coordinates (x, y) Dimensions (w x h) Description
logo (170, 6) 245 x 40 This is your main logo
[untitled] (694,23) 50 x 23 This will be the active state of our CSS sprite
[untitled] (748, 23) 3 x 23 The right side rounded corners on the active state
[untitled] (860, 23) 50 x 23 The idle state of our CSS sprite.
[untitled] (934, 23) 3 x 23 The right side rounded corners on the idle state.

4. Select the second 50×23 menu slice and press Ctrl + C to copy.

5. Create a new Photoshop document and paste that slice into the document.

6. Change the height of the canvas from 23px to 46px. It should look like this:

Resize Canvas Sprite

Notice how it doubles the height of the canvas?

7. Go back to Home.psd and select the first 50×23 menu slice and copy it into your clipboard.

8. Go back to the document you just made and paste that right below the first one.

Your new document should look like this:

Large Sprites

9. Change the canvas size to 75 x 46.

10. Select Layer 2. Select and fill the white space with the light blue. It should look like the image below.

Resize Sprite

Repeat this so that both layers extend to the right.

11. Save this file as main_menu.png in your images folder.

12. Repeat steps 1 – 7 for the two remaining thin menu slices. Make sure that the dark one is on top.

13. Save them as main_menu_right.png in your images folder.

The Logo

14. Go back to home.psd

15. Select File > Save for Web and Devices

16. Select the logo slice and change it to PNG-8

17. Save it into your images folder.

18. Save and close home.psd

Step 3: Slice up the Favicon

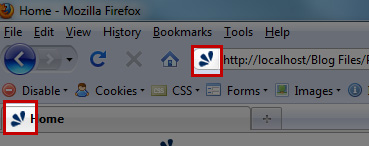

The favicon is the little icon that appears in your bookmarks and the top of your browser. It’s a good way to visually differentiate your site from others in your bookmarks. Plus it just makes it look more professional.


Install the .ico plugin

The .ico plugin makes it possible to create transparent favicons that will work across all browsers.

1. Download the plugin here:

2. Extract the files to your download directory.

3. Copy ICOFormat.8BI to the File Formats directory in your Photoshop Install.

(Usually it is C:\Program Files\Adobe\Adobe Photoshop CS4\Plug-ins\File Formats\)

Slice the favicon

4. Open Photoshop

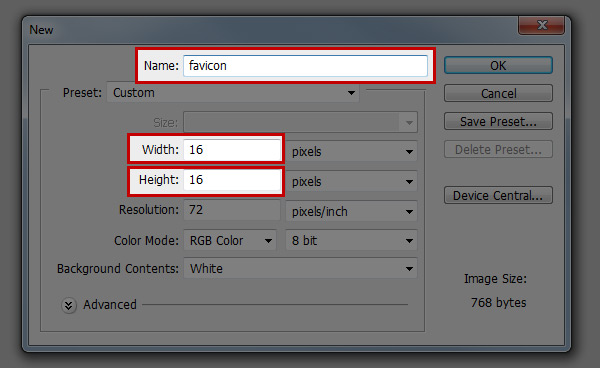

5. Create a new document that is 16 x 16. Name it favicon. (See below)

Favicon Blank

6. Remove the background layer.

7. Open Home.psd

8. In the layers palette go to Header > Logo

9. Drag the Leaves smart object from that layer to favicon.

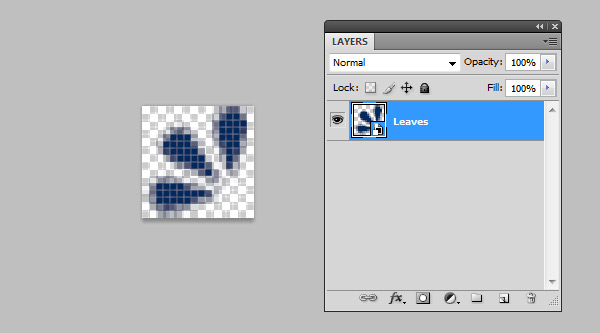

10. Resize the Leaves smart object until it looks like this. (Note: I zoomed in to 700%)

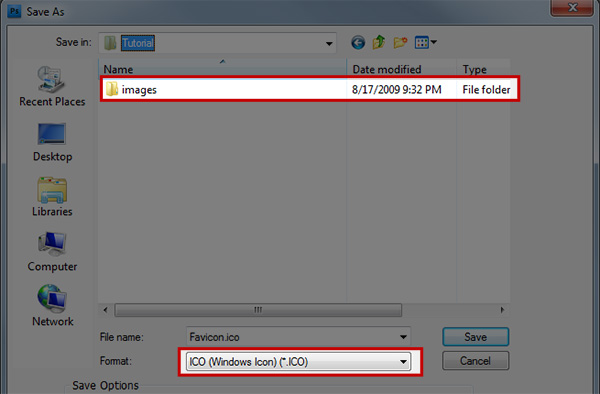

11. Go to File > Save As

12. Choose ICO from the drop down list and save it in the images folder.


13. Your favicon is finished!

Step 4: Slice up the Home Page

1. If it isn’t already, open Home.psd and make sure that the Body group is visible.

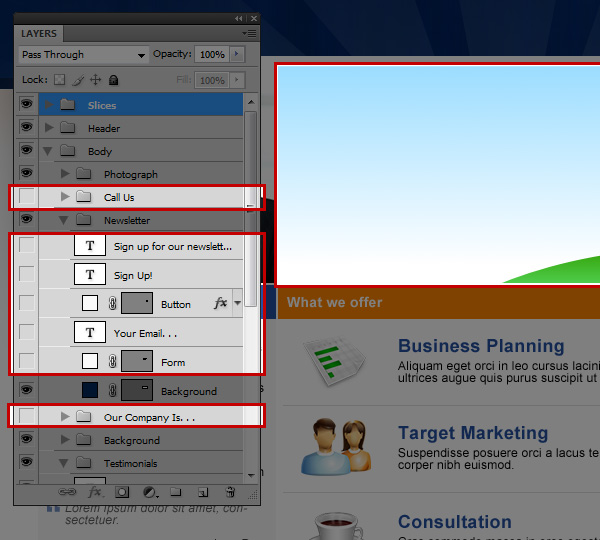

2. Expand the Body group and hide the following layers.


This will hide most of the content in the sky region.

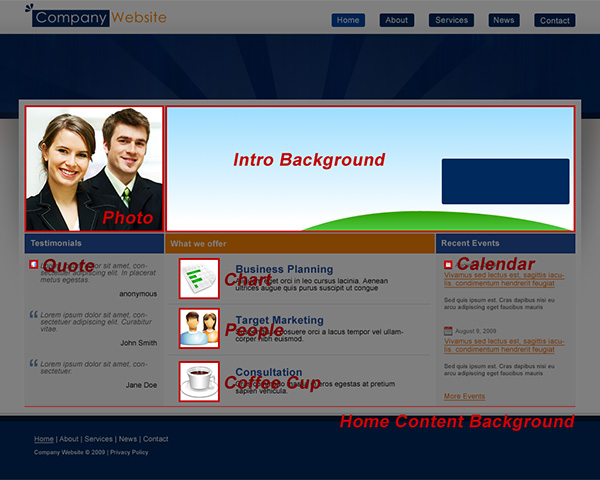

3. We are going to slice up the following elements:

Home Slices

4. Create 8 slices with these parameters.

Slice Name: Coordinates (x, y) Dimensions (w x h) Description
photo (170, 180) 238 x 217 The photograph
intro_background (410, 180) 700 x 217 The Introduction background.
quote (178, 444) 15 x 15 A nice hanging quote that gives the testimonials style.
chart (433, 441) 70 x 70 The icon for Business Planning.
people (433, 526) 70 x 70 The icon for Target Marketing.
chart (433, 617) 70 x 70 The icon for Consulation.
calendar (886, 445) 14 x 15 The icon for events.
home_content_background (170, 694) 940 x 1 Creates the gray background for the first and third column on the home page.

5. Click File > Save for Web and Devices and set the following formats

Slice Name: File Format
photo JPEG
intro_background JPEG
quote PNG-8
chart PNG-8
people PPNG-8
coffee_cup PNG-8
calendar PNG-8
home_content_background GIF

6. Save the slices to the images folder.

7. Close Home.psd.

Step 5: Slice up the About Page

1. Open About.psd

2. We’re only going to create two slices, when you’re done it should look like thi:

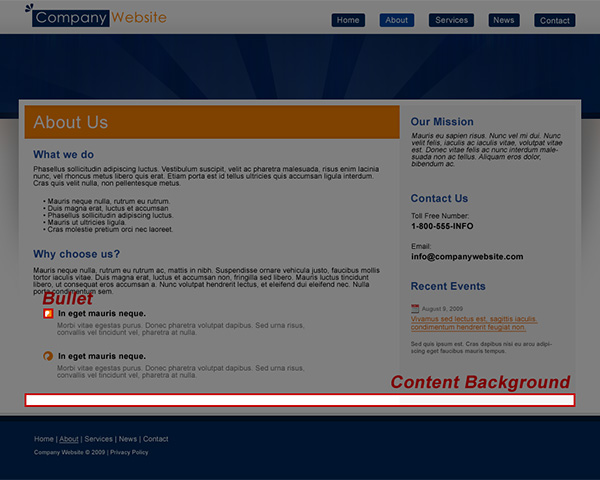

About Slice

3. Create two slices with the following parameters.

Slice Name: Coordinates (x, y) Dimensions (w x h) Description
bullet (202, 527) 17 x 17 They stylized bullet for the definition list
content_background (170, 694) 940 x 1 The generic, two column background.

4. Go to File > Save for Web and Devices

5. Give the slices the following formats

Slice Name: File Format
bullet PNG-8
content_background GIF

6. Save them to the images folder.

7. You’re done slicing!
